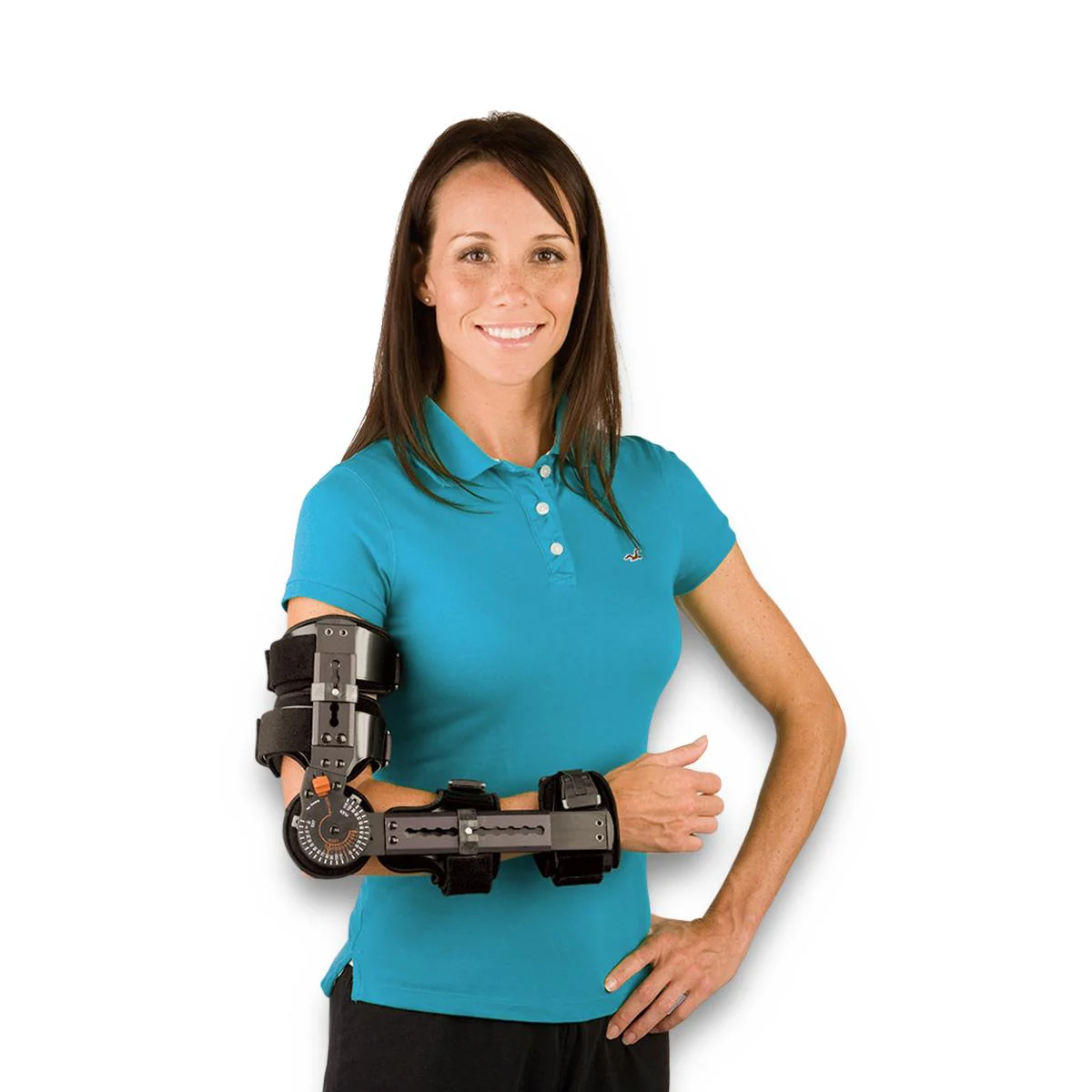

The Telescoping Elbow Brace is designed to handle post-op elbow arthroscopy, severe elbow strains and ligament trauma. The Bledsoe Telescoping Elbow Brace should be used when limited R.O.M. or locked control of the elbow is desired. In most cases, the Bledsoe Telescoping Elbow Brace can be formed, fitted and adjusted in 5 minutes or less.
- Formable aluminum plates adjust to fit virtually any arm circumference.
- After initial fitting, the brace can be easily removed in one piece and reapplied by the patient with one hand.
- Open, light weight design for patient comfort. The lateral hinge and arm design prevents rubbing against the body or abrasions.
- Easily set range of motion from -10° to 110° and/or lock the arm in any position from 0° to 100° in 10° increments.
- Detachable, formable wrist-arm splint for increased
stability of the forearm-wrist-hand.
This device is indicated for immediate application following injury or operative procedures to the elbow, or for stable or internally fixed fractures of the distal humerus or proximal to middle radius or ulna where locked or limited motion control of the elbow is desired.
This device is contraindicated for unstable fractures or for fractures of the proximal humerus or the distal radius or ulna.
Neutral Hand Postion Attachment
Measure from ulnar styloid process to medial humeral epicondyle (A to B)
7" - 9.5" (18 - 24 cm) = Small
8.5" - 12.5" (21.5 - 32 cm) = Large
Measure from medial humeral epicondyle to axilla (B to C)
5.5" - 8" (14 - 20 cm) = Small
7" - 11.5" (18 - 29 cm) = Large
|Telescoping Elbow Brace ||Neutral Hand Position Attachment (Optional) |
|Brace Size ||Left Arm ||Right Arm ||Small Left ||Small Right ||Large Left ||Large Right |
|One Size ||AE023100 ||AE023200 ||AE012111 ||AE012211 ||AE012113 ||AE012213 |
|Pronation/ Supination Attachment (Optional) |
|Brace Size ||Left Arm ||Right Arm |
|One Size ||AE012123 ||AE012223 |
